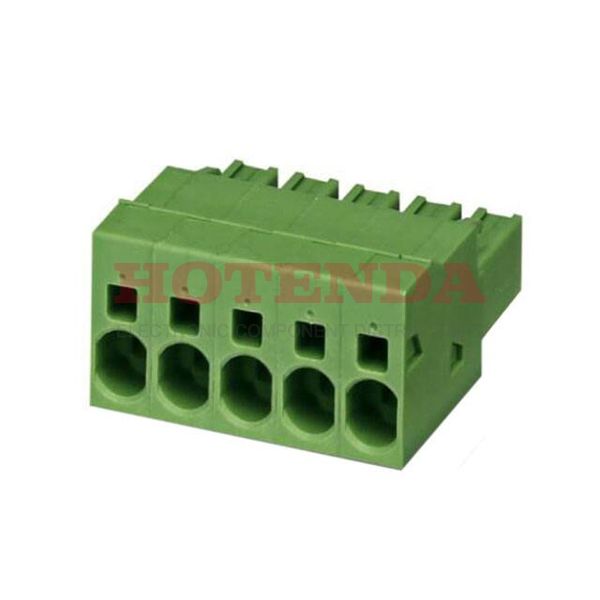

Name: 1996045
Brand: Phoenix Contact
SKU: 1996045
Price: 9.07000 USD
Availability: InStock

new

1996045

Manufacturer part number:1996045

Manufacturer:Phoenix Contact

Description:1996045 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1996045 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2011
Series	COMBICON SPC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.300 7.62mm
Insulation Height	0.780 19.80mm
Current Rating	41A
Termination Style	Screwless - Push-In Spring
Voltage	600V
Number of Levels	1
Current	35A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	15mm
Current - IEC	41A
Number of Positions Per Level	5
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1996045 Product Details

1996045 Overview

The device's mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON SPC Series of products.Then there's PA, UL 94V-0, for example.Its Retention Latches (Non-Wire Side) feature makes it more powerful in a number of ways.Free Hanging represents the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
