Name: 1863136
Brand: Phoenix Contact
SKU: 1863136
Price: 20.00000 USD
Availability: InStock

new

1863136

Manufacturer part number:1863136

Manufacturer:Phoenix Contact

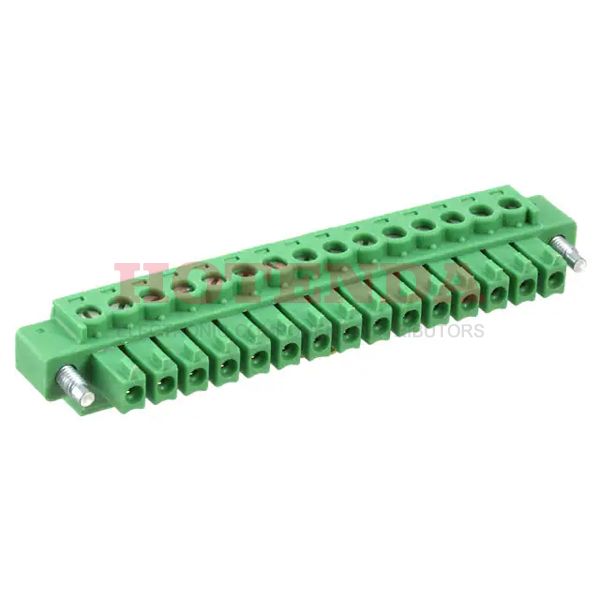

Description:Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MCVW Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1863136 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON MCVW
Published	2010
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	15
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	15
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1863136 Product Details

1863136 Overview

The product is packaged in Screw.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MCVW Series.To name a few, there is also PA, 94V-0.There are a number of advantages to its Mating Flange feature.Part Free Hanging is mounted to the part.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
