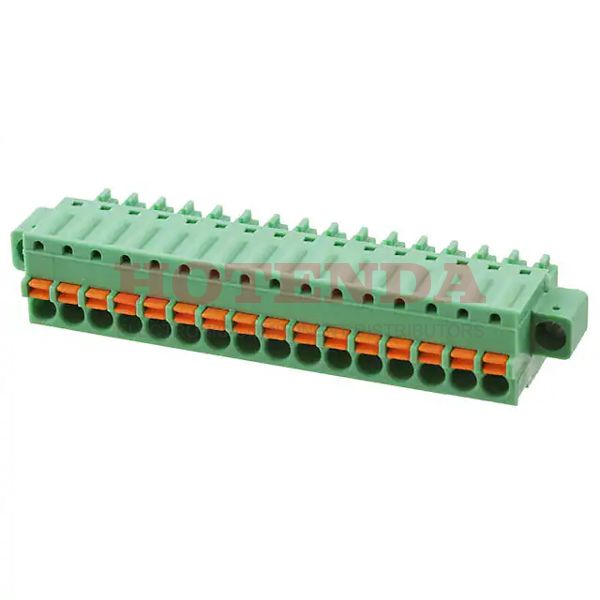

Name: 1851371
Brand: Phoenix Contact
SKU: 1851371
Price: 34.35000 USD
Availability: InStock

new

1851371

Manufacturer part number:1851371

Manufacturer:Phoenix Contact

Description:1851371 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851371 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2011
Series	COMBICON FK-MCP
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	20.8mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Fastening Method	SPRING LOADED
Height	20.8mm
Length	71.35mm
Width	71.35mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1851371 Product Details

1851371 Overview

This product is packaged in a Socket box.Free Hanging (In-Line) is the mounting type for the device.We package the product with a Bulk case.Among the products in the COMBICON FK-MCP Series, it is one of the most popular.Furthermore, there are other features such as PA, 94V-0, to name a few.A number of features make it more powerful because of its Mating Flange feature.Mounted by Free Hanging.The supply voltage of this chip should not exceed 160V.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
