Name: 1990067
Brand: Phoenix Contact
SKU: 1990067
Price: 1.24000 USD
Availability: InStock

new-10%

1990067

Manufacturer part number:1990067

Manufacturer:Phoenix Contact

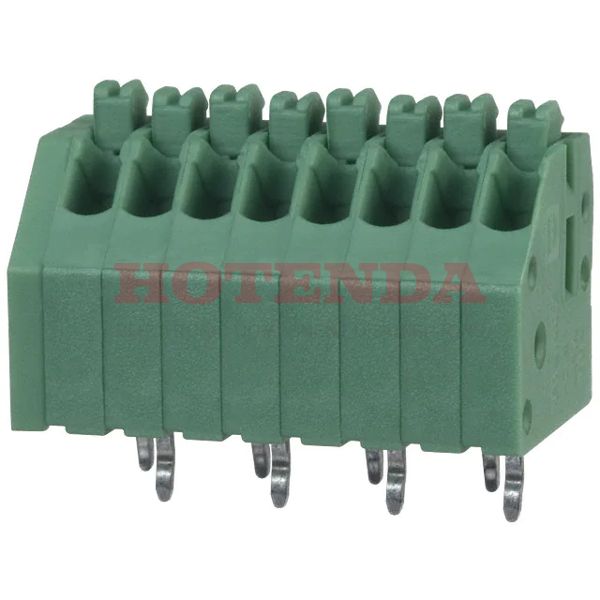

Description:0.098 2.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSA

Case Package:SOT-23

Datasheet:1990067 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.810005g
Packaging	Bulk
Series	COMBICON PTSA
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.098 2.50mm
Reach Compliance Code	unknown
Current Rating	2A
Approval Agency	UL, VDE
Number of Contacts	8
Wire Gauge	20-26 AWG
Voltage	300V
Max Current Rating	2A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Wire/Cable Gauge	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	8
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Wire Cross Section	0.5 mm2
Fastening Method	SPRING LOADED
Height	16.7mm
Length	12mm
Width	21.5mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1990067 Product Details

1990067 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON PTSA Series.Moreover, there are a number of other features, including PA, UL 94V-0, to name just a few.Through Hole is used to mount the part.
