Name: 1935268
Brand: Phoenix Contact
SKU: 1935268
Price: 2.63000 USD
Availability: InStock

new-10%

1935268

Manufacturer part number:1935268

Manufacturer:Phoenix Contact

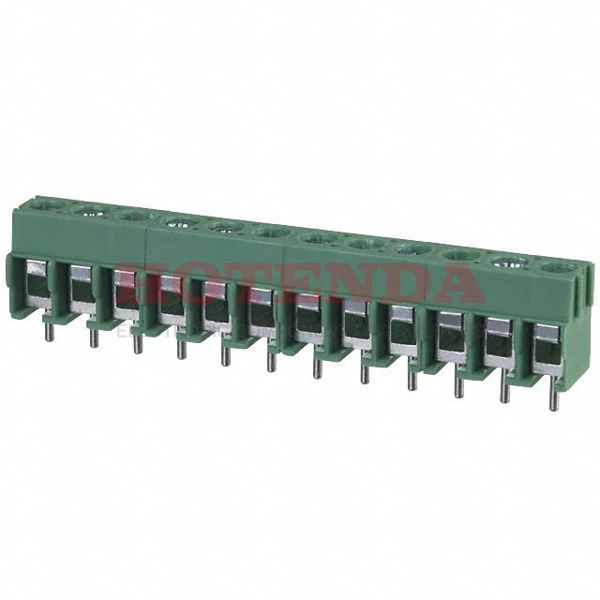

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 12-26 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1935268 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	11.479998g
Packaging	Bulk
Series	COMBICON PT
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	320V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Current Rating	17.5A
Approval Agency	CB, UL, VDE
Number of Contacts	12
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	16A
Number of Levels	1
Current	18A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M2.6
Stripping Length	5mm
Height	11.3mm
Length	60mm
Width	60mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1935268 Product Details

1935268 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON PT Series.Among other features are PA, 94V-0, to name only a few.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.This chip should not be operated above 250V volts.
