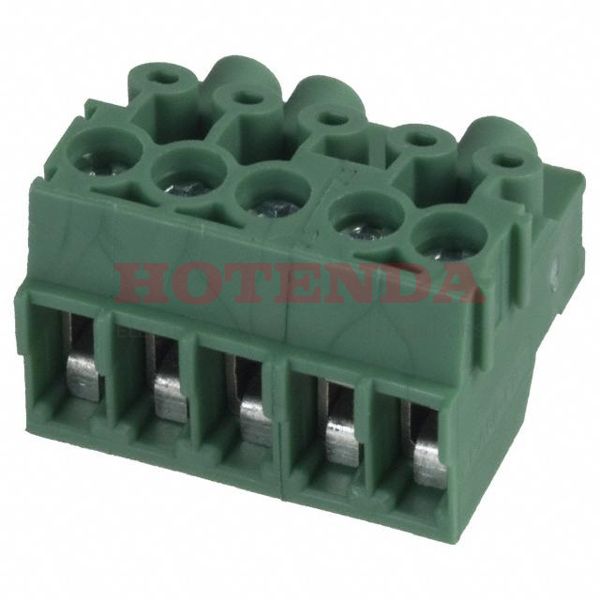

Name: 1984044
Brand: Phoenix Contact
SKU: 1984044
Price: 1.28000 USD
Availability: InStock

new-10%

1984044

Manufacturer part number:1984044

Manufacturer:Phoenix Contact

Description:1984044 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984044 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	3.38g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	11.1mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	5
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Screw Size	M2
Stripping Length	5mm
Test Voltage	2.5kV
Height	11mm
Length	14.6mm
Width	14.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984044 Product Details

1984044 Overview

Packaging for this item is Screw, Socket.Free Hanging (In-Line) indicates that the device is mounted.To package the product, we use a Bulk case.A member of the COMBICON PT Series.The best time to use this device is when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.By Cable, Free Hanging, Plug-In it's mounted.In addition to its benefits, this part also shares many with the other products in the Plug for Unshrouded Header series.
