Name: 1850738
Brand: Phoenix Contact
SKU: 1850738
Price: 21.55000 USD
Availability: InStock

new

1850738

Manufacturer part number:1850738

Manufacturer:Phoenix Contact

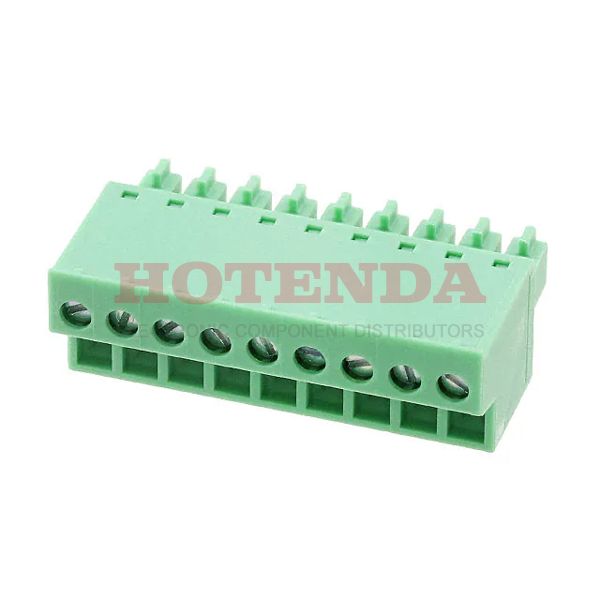

Description:Bulk 0.150 3.81mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-MC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1850738 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Series	COMBICON FRONT-MC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.484 12.30mm
Current Rating	8A
Termination Style	Screw - Pressure Clip
Number of Contacts	9
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	9
Safety Approval	CB; CSA; CUL; EAC; EN; VDE; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Screw Size	M2
Height	21.7mm
Length	12.3mm
Width	35.08mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1850738 Product Details

1850738 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON FRONT-MC Series.It is mounted by Cable, Free Hanging.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
