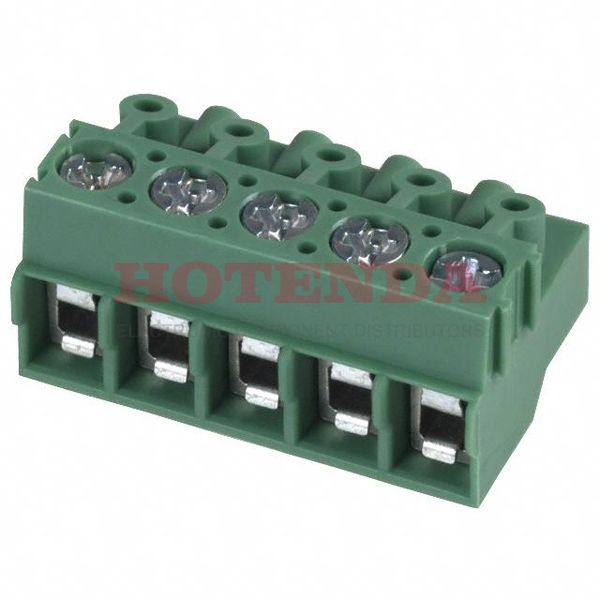

Name: 1934890
Brand: Phoenix Contact
SKU: 1934890
Price: 1.16000 USD
Availability: InStock

new-10%

1934890

Manufacturer part number:1934890

Manufacturer:Phoenix Contact

Description:1934890 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1934890 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	5.679997g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle/Straight
Depth	15mm
Insulation Height	0.449 11.40mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	5
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	10A
Number of Levels	1
Current	15A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	12A
Screw Size	M2.6
Stripping Length	5mm
Height	11.3mm
Length	25mm
Width	15mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1934890 Product Details

1934890 Overview

The product comes in a package of Screw.The mounting type of the device is Free Hanging (In-Line).We use a Bulk case to package the product.It's from the COMBICON PT Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Cable, Free Hanging, Plug-In mounts the part.This chip shouldn't have a supply voltage over 250V.It shares many benefts with other Plug for Unshrouded Header products.
