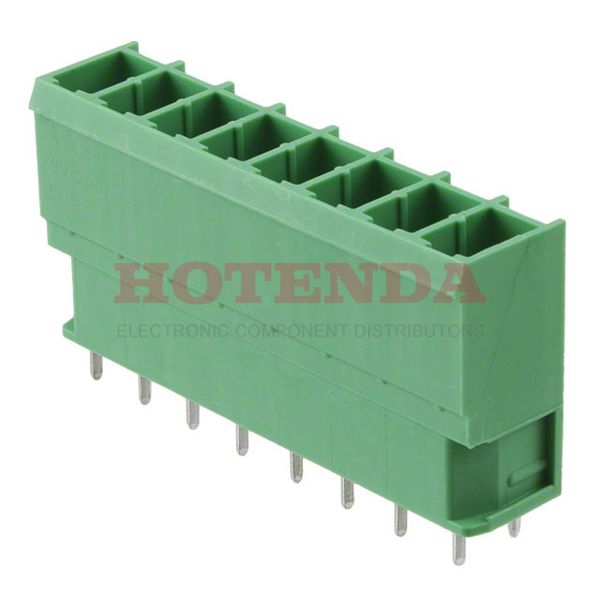

Name: 1804742
Brand: Phoenix Contact
SKU: 1804742
Price: 15.21000 USD
Availability: InStock

new

1804742

Manufacturer part number:1804742

Manufacturer:Phoenix Contact

Description:1804742 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804742 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2011
Series	COMBICON PCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL
Pitch	0.300 7.62mm
Orientation	Straight
Depth	14.3mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	8
Safety Approval	BV; CSA; CUL; DNV; EAC; GL; LR
Header Orientation	Vertical
Number of Positions Per Level	8
Fastening Method	CONNECTOR
Height	50mm
Length	60.94mm
Width	60.94mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804742 Product Details

1804742 Overview

The packaging is Plug.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON PCV Series, it is one of the most popular.There are also other features like STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL, to name a few.Through Hole mounts the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
