Name: 1929517
Brand: Phoenix Contact
SKU: 1929517
Price: 12.21000 USD
Availability: InStock

new

1929517

Manufacturer part number:1929517

Manufacturer:Phoenix Contact

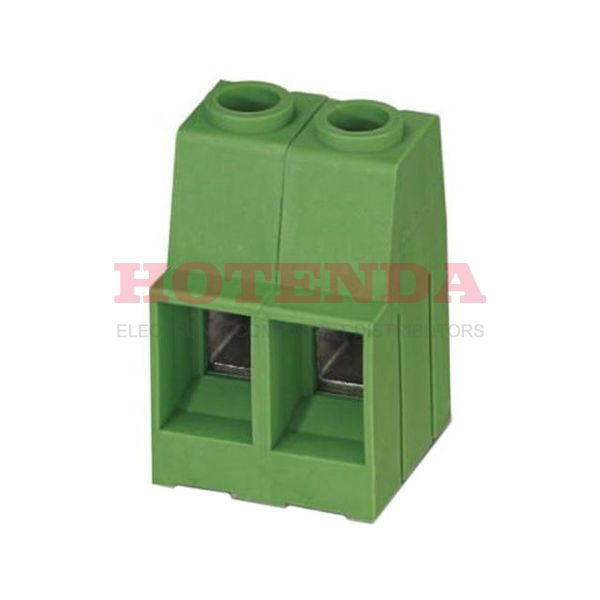

Description:0.400 10.16mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 6-20 AWG COMBICON MKDSP

Case Package:SOT-23

Datasheet:1929517 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	17.109986g
Packaging	Bulk
Series	COMBICON MKDSP
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Current Rating	76A
Wire Gauge	6-20 AWG
Voltage	600V
Number of Levels	1
Current	60A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	6 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M4
Height	31mm
Length	20.32mm
Width	35.8mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1929517 Product Details

1929517 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON MKDSP belongs to the COMBICON MKDSP Series.Further, there are features such as PA, 94V-0, to name only a few.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.
