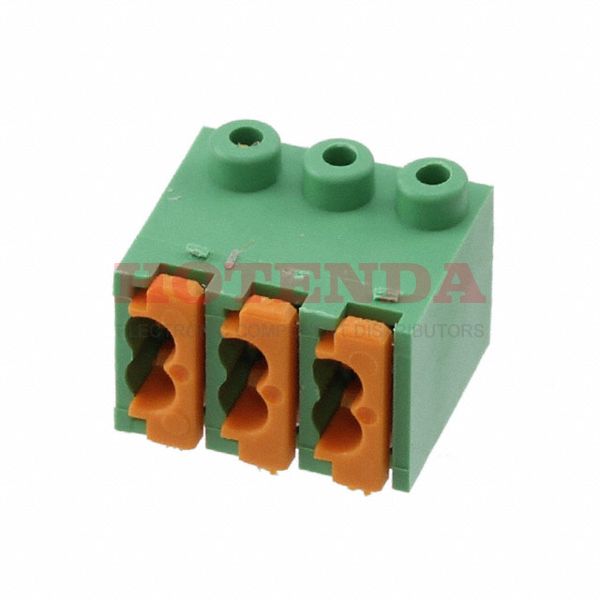

Name: 1913934
Brand: Phoenix Contact
SKU: 1913934
Price: 1.49000 USD
Availability: InStock

new-10%

1913934

Manufacturer part number:1913934

Manufacturer:Phoenix Contact

Description:1913934 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913934 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper, Tin
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Weight	839.99637mg
Packaging	Bulk
Published	2010
Series	COMBICON FK-MPT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Insulation Height	0.335 8.51mm
Current Rating	4A
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Contacts	3
Voltage	300V
Max Current Rating	4A
Number of Levels	1
Current	4A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	20-28 AWG
Voltage - IEC	250V
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.12-0.5mm2
Wire Strip Length	6.5mm
Wire Cross Section	0.5 mm2
Fastening Method	SPRING LOADED
Height	9.5mm
Length	8.5mm
Width	11mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1913934 Product Details

1913934 Overview

Free Hanging (In-Line) is the type of mounting for the device.It is necessary to use a Bulk case for packaging the product.The product is a member of the COMBICON FK-MPT Series.Among other features are PBT, 94V-0, to name only a few.There's a Free Hanging, Through Hole on the part.Other Plug for Unshrouded Header products benefit from this part as well.
