Name: 1848009
Brand: Phoenix Contact
SKU: 1848009
Price: 6.79000 USD
Availability: InStock

new-10%

1848009

Manufacturer part number:1848009

Manufacturer:Phoenix Contact

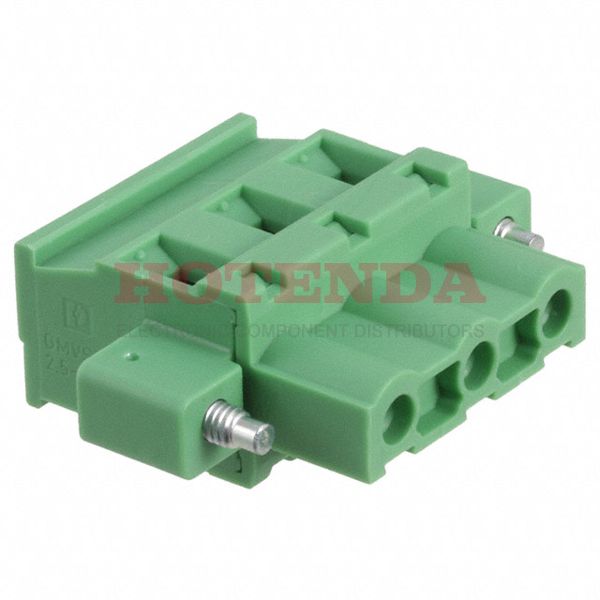

Description:Bulk 0.300 7.62mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON GMVSTBW Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1848009 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	170.097139g
Packaging	Bulk
Series	COMBICON GMVSTBW
Published	2011
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1848009 Product Details

1848009 Overview

This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON GMVSTBW Series.Other features include PA, 94V-0, to name just a few.Several benefits come from the Mating Flange, Retention Latches (Non-Wire Side) feature.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
