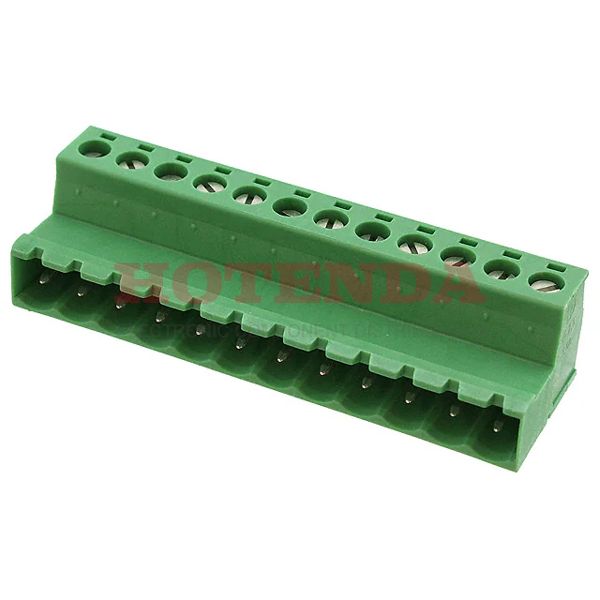

Name: 1786271
Brand: Phoenix Contact
SKU: 1786271
Price: 20.77000 USD
Availability: InStock

new

1786271

Manufacturer part number:1786271

Manufacturer:Phoenix Contact

Description:1786271 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786271 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	137.000006g
Packaging	Bulk
Published	2010
Series	COMBICON IC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	12
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	19.2mm
Length	7mm
Width	62.46mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1786271 Product Details

1786271 Overview

You'll get Plug, Screw packages.Free Hanging (In-Line) is the mount type.A Bulk case is used to package the product.Product number COMBICON IC belongs to the COMBICON IC Series.Also, there's PA, 94V-0, to name a few.Cable, Free Hanging is the mounting point for the part.Other Plug, Male Pins products benefit from this part as well.
