Name: 1940004
Brand: Phoenix Contact
SKU: 1940004
Price: 25.43000 USD
Availability: InStock

new

1940004

Manufacturer part number:1940004

Manufacturer:Phoenix Contact

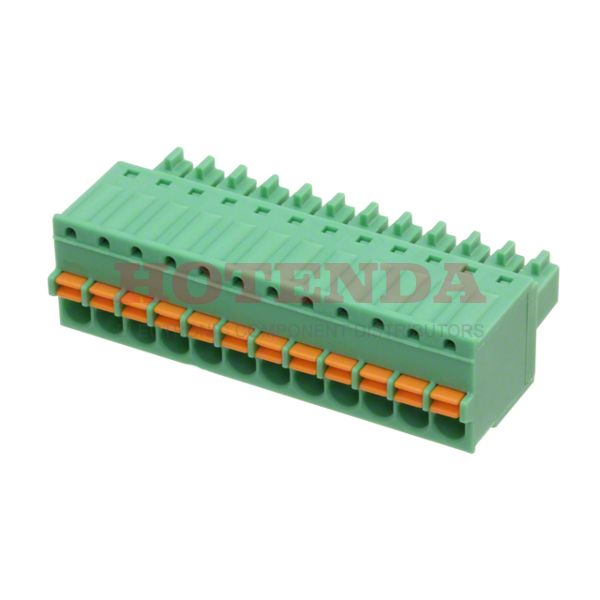

Description:Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FK-MCP Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1940004 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	10.23001g
Packaging	Bulk
Series	COMBICON FK-MCP
Published	2009
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	20.8mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Number of Contacts	12
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Fastening Method	SPRING LOADED
Height	20.8mm
Length	42.9mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1940004 Product Details

1940004 Overview

Packaging is in the form of Socket.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FK-MCP Series.Other features include PA, UL 94V-0, to name just a few.There is a mounting hole at Cable, Free Hanging.There should be no voltage above 0 on the supply line for this chip.There are many benefits that this part shares with other Plug, Female Sockets products as well.
