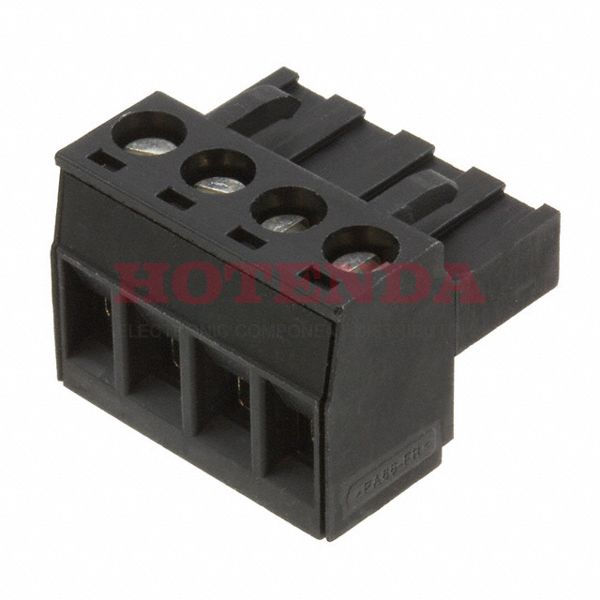

1893313

1893313

1893313

Phoenix Contact

1893313 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1893313 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.589988g
PackagingBulk
Published 2011
Series COMBICON MSTBT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Height 18.2mm
Length 15mm
Width 20mm
Material Flammability Rating UL94 V-2
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
In-Stock:1229 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.40000$6.4
10$6.22400$62.24
50$5.81700$290.85
100$5.35170$535.17
250$4.94444$1236.11
500$4.71178$2355.89

1893313 Product Details

1893313 Overview


The product is packaged in Screw, Socket.Free Hanging (In-Line) is the mounting type.A Bulk case is used for packaging.This product is in the COMBICON MSTBT Series.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Cable, Free Hanging is the mounting point for the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1893313 Features


COMBICON MSTBT series

1893313 Applications


There are a lot of Phoenix Contact 1893313 Terminal Blocks applications.

  • Military Technology
  • Automotive Electronics
  • Communication
  • Instrumentation
  • Embedded systems
  • All Electrical Machinery
  • Anywhere power is distributed
  • LED municipal outdoor and street lighting
  • Energy efficient lighting (LED)
  • Datacom
