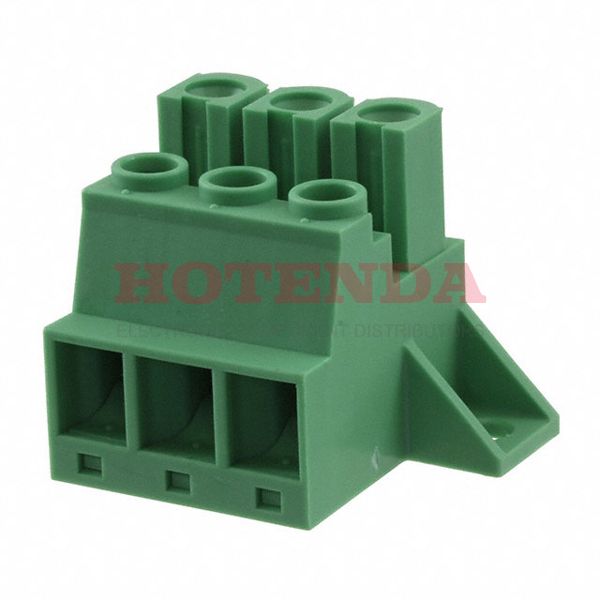

Name: 1922640
Brand: Phoenix Contact
SKU: 1922640
Price: 12.84000 USD
Availability: InStock

new

1922640

Manufacturer part number:1922640

Manufacturer:Phoenix Contact

Description:1922640 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1922640 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Cable, Panel
Mounting Type	Panel Mount
Housing Material	Polyamide (PA), Nylon
Weight	28.690001g
Packaging	Bulk
Published	2002
Series	COMBICON PCU
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V0
Pitch	0.400 10.16mm
Insulation Height	1.335 33.90mm
Reach Compliance Code	unknown
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	600V
Max Current Rating	41A
Number of Levels	1
Current	50A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	8 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.5-10mm2
Wire Strip Length	12mm
Screw Size	M4
Height	33.9mm
Length	32.8mm
Width	50.64mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1922640 Product Details

1922640 Overview

You'll get Plug, Screw packages.The device's mounting type is Panel Mount.An orange Bulk case is used to package the product.This product is from the COMBICON PCU Series.There are also features like PA, UL 94V0, just to name a few.A number of advantages are provided by its Mounting Flange feature.There's a Cable, Panel on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
