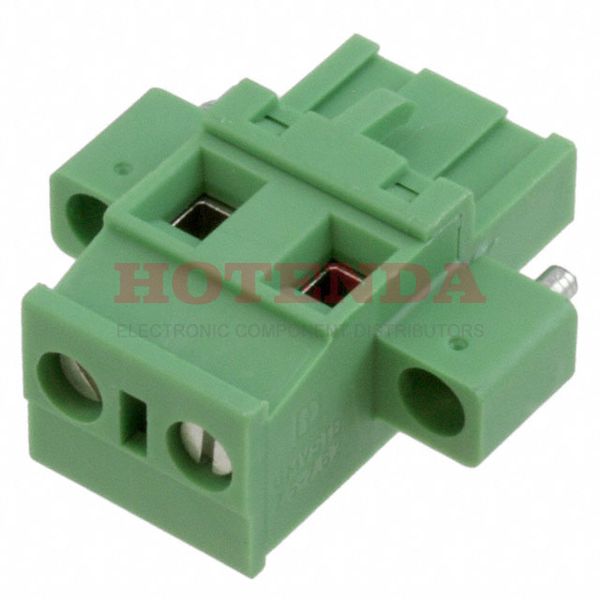

Name: 1847880
Brand: Phoenix Contact
SKU: 1847880
Price: 4.51000 USD
Availability: InStock

new-10%

1847880

Manufacturer part number:1847880

Manufacturer:Phoenix Contact

Description:1847880 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847880 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	5.43999g
Packaging	Bulk
Published	2011
Series	COMBICON GMVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	500V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1847880 Product Details

1847880 Overview

The packaging contains Screw.Free Hanging (In-Line) indicates that the device is mounted.Packaged in a Bulk case.It's from the COMBICON GMVSTBR Series.It is more powerful in many ways due to its Mating Flange, Retention Latches (Wire Side) feature.Mounted by Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.
