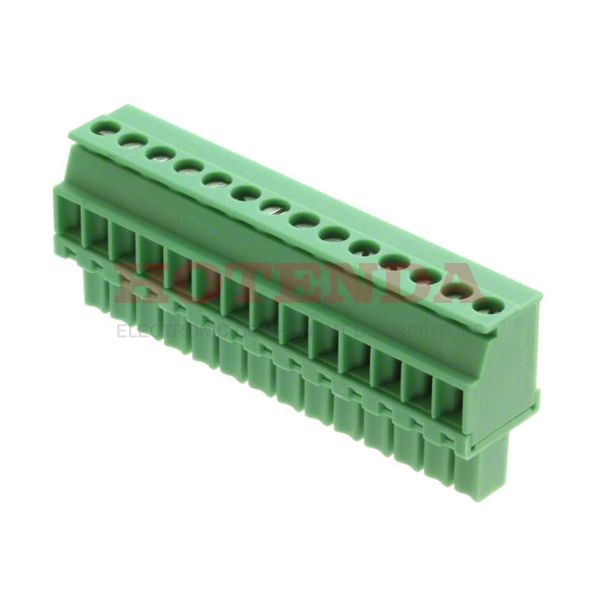

1862975

1862975

1862975

Phoenix Contact

1862975 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1862975 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 10.559999g
PackagingBulk
Published 2010
Series COMBICON MCVW
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, UL, VDE, cULus
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Poles 14
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 14
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Height 12.5mm
Length 49.8mm
Width 10.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:362 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$16.81000$16.81
10$16.34700$163.47
50$15.27760$763.88
100$14.05540$1405.54
250$12.98596$3246.49
500$12.37480$6187.4

1862975 Product Details

1862975 Overview


The product comes in a package of Screw, Socket.Free Hanging (In-Line) indicates that the device is mounted.To package the product, a Bulk case is used.The product is part of the COMBICON MCVW Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.There is a Cable, Free Hanging mount on the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1862975 Features


COMBICON MCVW series

1862975 Applications


There are a lot of Phoenix Contact 1862975 Terminal Blocks applications.

  • Variable speed/frequency drivers
  • Datacom
  • Automotive Electronics
  • Telecommunications
  • LED municipal outdoor and street lighting
  • Military Technology
  • Energy efficient lighting (LED)
  • All Electrical Machinery
  • Refrigeration control
  • Control panels
