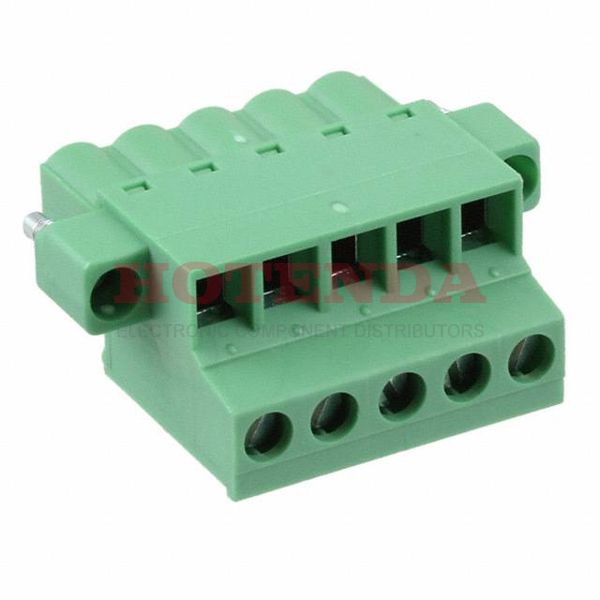

Name: 1894082
Brand: Phoenix Contact
SKU: 1894082
Price: 15.07000 USD
Availability: InStock

new

1894082

Manufacturer part number:1894082

Manufacturer:Phoenix Contact

Description:1894082 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1894082 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	15.410007g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Gold
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Screw Size	M2.5
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1894082 Product Details

1894082 Overview

Packaging is in the form of Screw.Its mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.The product belongs to the COMBICON FRONT-MSTB Series.Several benefits come from the Mating Flange, Retention Latches (Non-Wire Side) feature.This part is mounted by Free Hanging. There are a lot of similarities between this part and other Plug, Female Sockets products.
