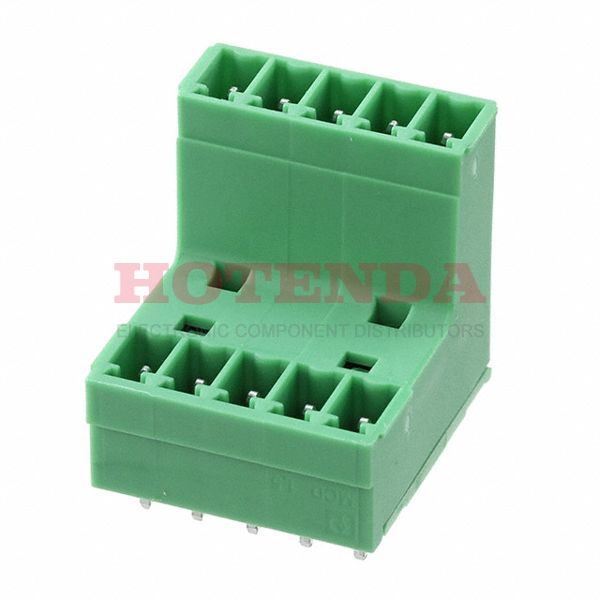

Name: 1830431
Brand: Phoenix Contact
SKU: 1830431
Price: 7.11000 USD
Availability: InStock

new-10%

1830431

Manufacturer part number:1830431

Manufacturer:Phoenix Contact

Description:1830431 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830431 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	118.000014g
Packaging	Bulk
Published	2011
Series	COMBICON MCDV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Color	Green
Number of Rows	2
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
Pitch	0.150 3.81mm
Depth	21.9mm
Insulation Height	0.862 21.89mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Voltage	300V
Contact Tail Length	0.134 3.40mm
Number of Levels	2
Current	8A
Voltage - UL	300V
Number of Decks	2
Voltage - IEC	320V
Number of Ways	10
Safety Approval	CB; CCA; CSA; CUL; EAC; VDE
Header Orientation	Vertical
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Height	22.7mm
Length	20.44mm
Width	22.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1830431 Product Details

1830431 Overview

This product is packaged in a Plug carton.Through Hole is the mounting type for the device.Packaging for the product is carried out via a Bulk case.A member of the COMBICON MCDV Series.As well as PBT, 94V-0, to name a few.It's mounted by Through Hole.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
