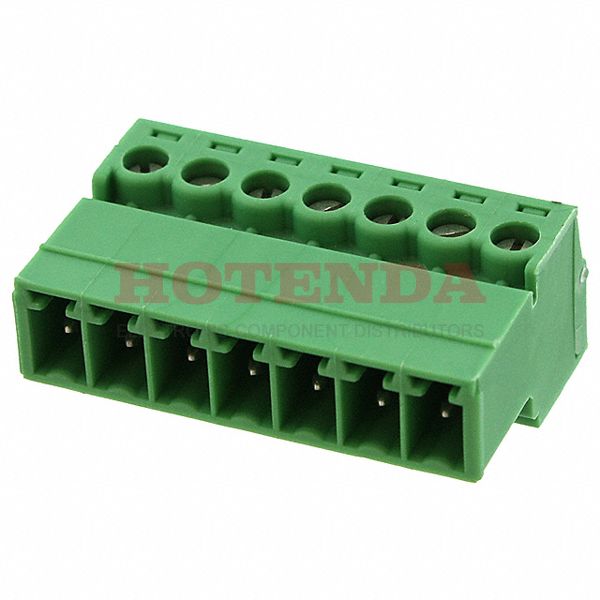

Name: 1857935
Brand: Phoenix Contact
SKU: 1857935
Price: 13.75000 USD
Availability: InStock

new

1857935

Manufacturer part number:1857935

Manufacturer:Phoenix Contact

Description:1857935 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1857935 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	5.810008g
Packaging	Bulk
Published	2011
Series	COMBICON IMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	17.9mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	7
Screw Size	M2
Length	27.46mm
Width	17.9mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1857935 Product Details

1857935 Overview

The packaging is Screw.The device's mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.The product is a member of the COMBICON IMC Series.Additionally, there are features like PA, 94V-0, just to name a few.There is a Cable, Free Hanging mount on the part.There should be no more than 160V voltage supplied to this chip.Compared to other Plug, Male Pins products, this part has a lot of benefits to offer.
