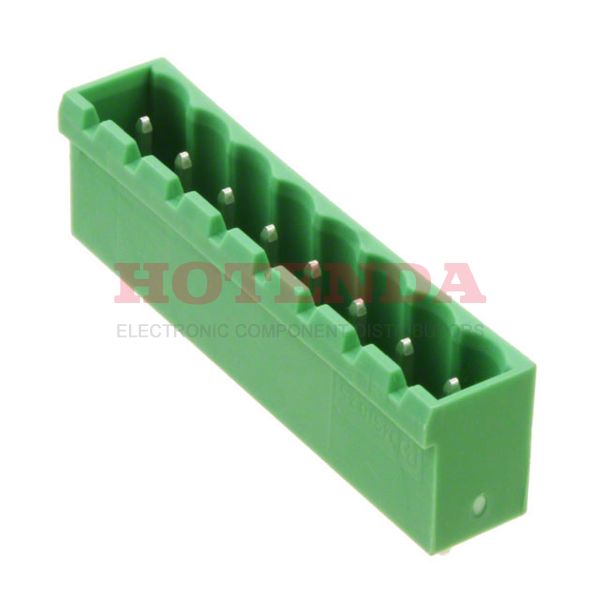

Name: 1755574
Brand: Phoenix Contact
SKU: 1755574
Price: 3.02000 USD
Availability: InStock

new-10%

1755574

Manufacturer part number:1755574

Manufacturer:Phoenix Contact

Description:1755574 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755574 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.100133kg
Packaging	Bulk
Published	2005
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0, SAFETY APPROVAL VDE
Voltage - Rated DC	400V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	8
Number of Decks	1
Number of Ways	8
Safety Approval	CCA; CB; CSA; CUL; GOST; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.9mm
Length	42mm
Width	42mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755574 Product Details

1755574 Overview

It comes in a Plug package.Through Hole is the mounting type.A Bulk case is used to package the product.It belongs to the COMBICON MSTBVA Series of products.Among other features are PA, UL 94V-0, SAFETY APPROVAL VDE, to name only a few.Through Hole represents the mounting point for the part.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
