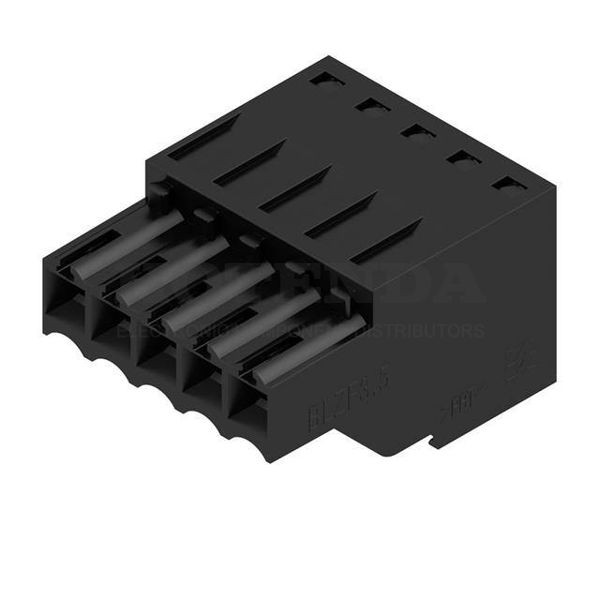

Name: 1690450000
Brand: Weidmüller
SKU: 1690450000
Price: 4.44000 USD
Availability: InStock

new-10%

1690450000

Manufacturer part number:1690450000

Manufacturer:Weidmüller

Description:1690450000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1690450000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Crimp
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	5
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.512 13.00mm
Current Rating	14.5A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Max Current Rating	10A
Number of Levels	1
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Number of Positions Per Level	5
Stripping Length	10mm
Height	13mm
Length	17.5mm
Width	21.9mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1690450000 Product Details

1690450000 Overview

This product is packaged in a Terminal Block cartonIts mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.The product is a part of the Omnimate BL Series.Also, there's HIGH DENSITY, to name a few.Cable is used to mount the part.As a result, the device runs at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
