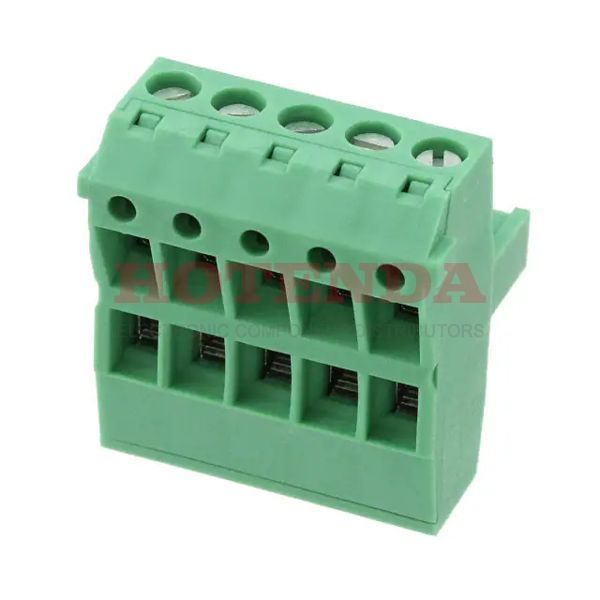

Name: 1853049
Brand: Phoenix Contact
SKU: 1853049
Price: 10.94000 USD
Availability: InStock

new

1853049

Manufacturer part number:1853049

Manufacturer:Phoenix Contact

Description:1853049 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1853049 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	207.999998g
Packaging	Bulk
Published	2011
Series	COMBICON TMSTBP
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Insulation Height	1.138 28.90mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	5 (Mate), 10 (Input)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Height	27.4mm
Length	21.5mm
Width	28.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1853049 Product Details

1853049 Overview

The product comes in a package of Screw, Socket.Mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON TMSTBP Series of products.Besides that, there's also PA, 94V-0, to name a few.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.The part is mounted by Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
