Name: 1766288
Brand: Phoenix Contact
SKU: 1766288
Price: 4.84000 USD
Availability: InStock

new-10%

1766288

Manufacturer part number:1766288

Manufacturer:Phoenix Contact

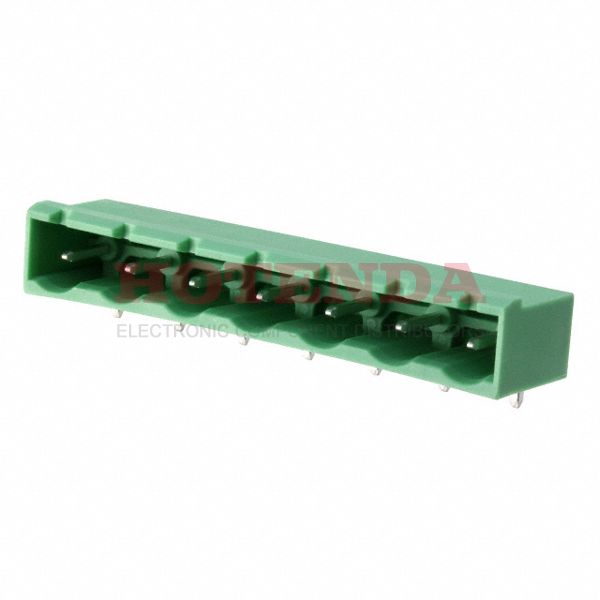

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON GMSTBA Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1766288 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	174.99999g
Packaging	Bulk
Series	COMBICON GMSTBA
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	7
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	7
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	18.5mm
Length	53.34mm
Width	53.34mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1766288 Product Details

1766288 Overview

Plug packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the COMBICON GMSTBA Series.Additionally, there are features like PA, 94V-0, just to name a few.You've got Through Hole mounted on the part.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (4 Side) series.
