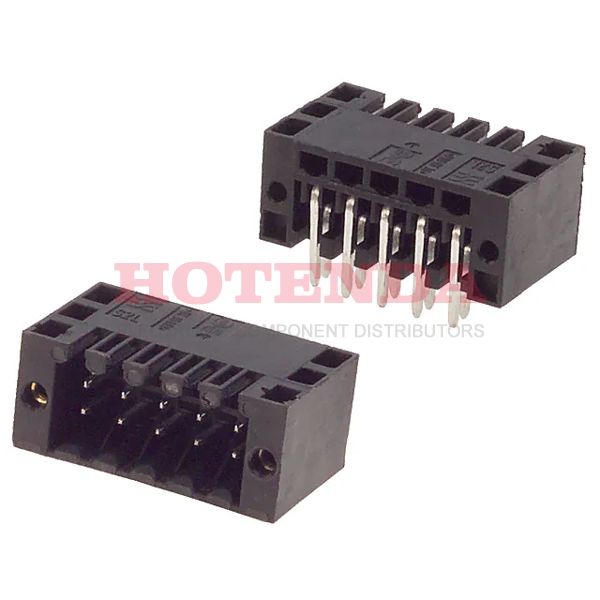

Name: 1728650000
Brand: Weidmüller
SKU: 1728650000
Price: 6.93000 USD
Availability: InStock

new

1728650000

Manufacturer part number:1728650000

Manufacturer:Weidmüller

Description:1728650000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1728650000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate S2L
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	150V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	10
Orientation	Right Angle
Ingress Protection	IP10
Depth	14.2mm
Insulation Height	0.413 10.49mm
Current Rating	10A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	150V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	7A
Number of Poles	10
Contact Mating Finish	Tin
Voltage - IEC	250V
Positions Per Level	5
Header Orientation	90°, Right Angle
Hole Diameter	1 mm
Length	24.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

1728650000 Product Details

1728650000 Overview

This device is mounted in the Through Hole position.The product is packaged in a Bulk case.A product of the Omnimate S2L Series, it belongs to the range of products of that series.There are a number of advantages to its Mating and Mounting Flange feature.Mounting of the part is based on Through Hole.-50°C~100°C Operating Temperature is the default operating temperature for the device.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
