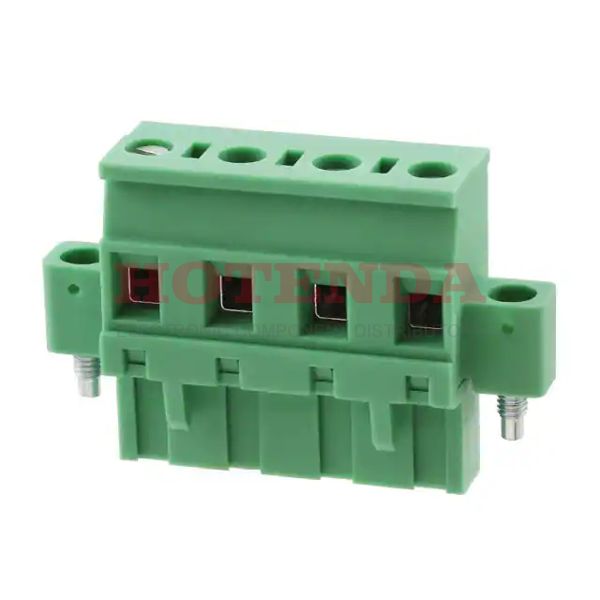

1847903

1847903

1847903

Phoenix Contact

1847903 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1847903 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 170.097139g
PackagingBulk
Published 2011
Series COMBICON GMVSTBR
Feature Mating Flange, Retention Latches (Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 500V
Pitch 0.300 7.62mm
Insulation Height 1.024 26.01mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 12.6mm
Width 40.92mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:957 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.290000$8.29
10$7.820755$78.20755
100$7.378070$737.807
500$6.960444$3480.222
1000$6.566456$6566.456

1847903 Product Details

1847903 Overview


This product is packaged in a Screw, Socket carton.Mounting type Free Hanging (In-Line) is assigned to the device.We package the product with a Bulk case.There is a product in the COMBICON GMVSTBR Series.In many ways, its Mating Flange, Retention Latches (Wire Side) feature makes it more powerful.In this case, Free Hanging mounts the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1847903 Features


COMBICON GMVSTBR series

1847903 Applications


There are a lot of Phoenix Contact 1847903 Terminal Blocks applications.

  • Energy efficient lighting (LED)
  • Embedded systems
  • Industrial Automation
  • Medical technology
  • Control panels
  • Electrical substations
  • Anywhere power is distributed
  • Instrumentation
  • Measuring & Control Technology
  • Automotive Electronics
