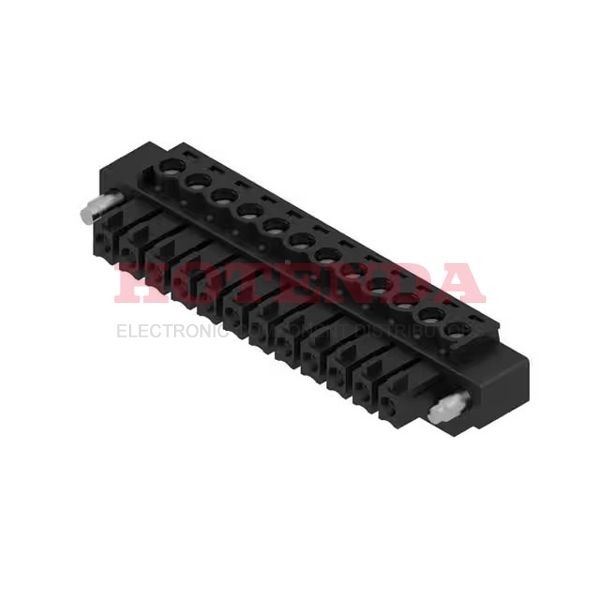

Name: 1793020000
Brand: Weidmüller
SKU: 1793020000
Price: 10.52000 USD
Availability: InStock

new

1793020000

Manufacturer part number:1793020000

Manufacturer:Weidmüller

Description:1793020000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1793020000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2004
Series	Omnimate BC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL94V-0, GF PA
Pitch	0.150 3.81mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.437 11.10mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
Number of Contacts	12
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	12
Safety Approval	CSA; IEC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17.5A
Screw Size	M2
Stripping Length	7mm
Height	11.1mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1793020000 Product Details

1793020000 Overview

This device is mounted in the Free Hanging (In-Line) position.An orange Bulk case is used to package the product.It is part of the Omnimate BC Series of products.There are also other features like STANDARD: UL94V-0, GF PA, to name a few.A number of aspects of its Mating Flange feature make it more powerful.Free Hanging, Panel is used to mount the part.Running in -50°C~120°C Operating Temperature.This part shares lots of benefits with other Plug, Female Sockets products.
