Name: 1913536
Brand: Phoenix Contact
SKU: 1913536
Price: 24.76000 USD
Availability: InStock

new

1913536

Manufacturer part number:1913536

Manufacturer:Phoenix Contact

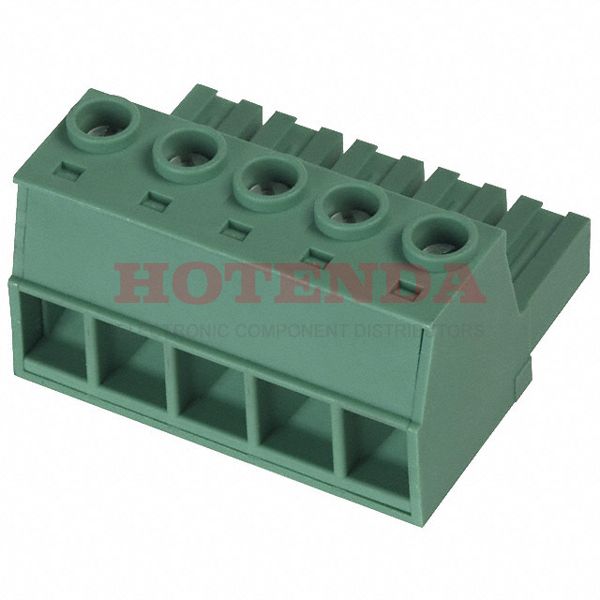

Description:Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON PC Polyamide (PA), Nylon Silver

Case Package:SOT-23

Datasheet:1913536 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	40.399998g
Packaging	Bulk
Published	2002
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V0
Pitch	0.400 10.16mm
Insulation Height	1.085 27.55mm
Reach Compliance Code	unknown
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	50A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	8 AWG
Contact Mating Finish	Silver
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-10mm2
Wire Strip Length	12mm
Current - IEC	41A
Screw Size	M4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1913536 Product Details

1913536 Overview

It comes in Screw packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON PC Series of products.In addition, there are other features such as PA, UL 94V0, to mention only a few.The part is mounted by Free Hanging.This part shares lots of benefits with other Plug, Female Sockets products.
