Phoenix Contact

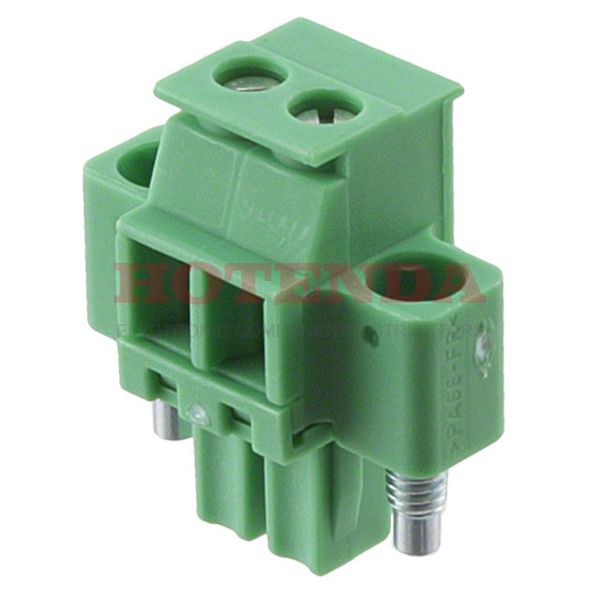

1828498 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1828498 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 100.999996g
PackagingBulk
Published 2011
Series COMBICON MCVW
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.752 19.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Height 18.01mm
Length 10.4mm
Width 19.1mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:3319 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.45000$2.45
10$2.38200$23.82
50$2.22600$111.3
100$2.04790$204.79
250$1.89208$473.02
500$1.80306$901.53

1828498 Product Details

1828498 Overview


Currently, it is packaged in Screw, Socket.Free Hanging (In-Line) is the mount type.We pack the product in a Bulk case.COMBICON MCVW Series product.There are also features like PA, 94V-0, just to name a few.A number of benefits can be derived from the Mating Flange feature of this application.There is a mounting hole at Free Hanging, Panel.There are a lot of similarities between this part and other Plug, Female Sockets products.

1828498 Features


COMBICON MCVW series

1828498 Applications


There are a lot of Phoenix Contact 1828498 Terminal Blocks applications.

  • Medical technology
  • Datacom
  • Refrigeration control
  • Embedded systems
  • Military Technology
  • Instrumentation
  • Communication
  • LED municipal outdoor and street lighting
  • Data Technology
  • Energy efficient lighting (LED)
