Name: ELFH09250
Brand: Amphenol PCD
SKU: ELFH09250
Price: 2.63000 USD
Availability: InStock

new-10%

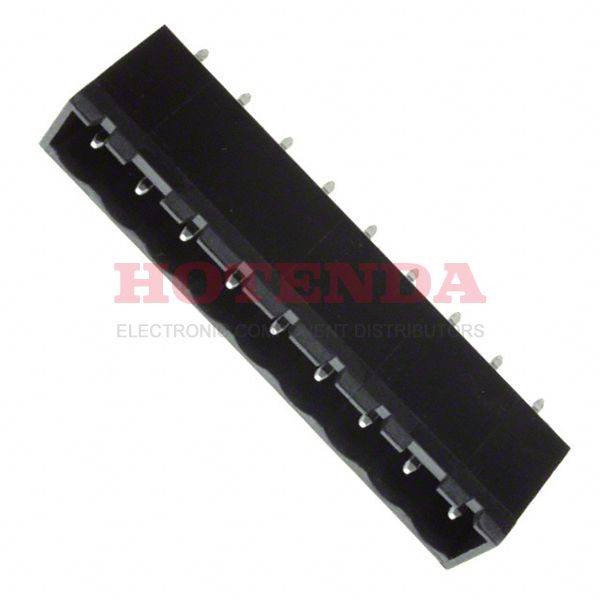

ELFH09250

Manufacturer part number:ELFH09250

Manufacturer:Amphenol PCD

Description:ELFH09250 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol PCD stock available on our website

Case Package:SOT-23

Datasheet:ELFH09250 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Lead, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2003
Series	ELFH
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Depth	8.1mm
Insulation Height	0.319 8.10mm
Current Rating	15A
Termination Style	Solder
Insulation Resistance	100GOhm
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	9
Safety Approval	UL; VDE; CSA
Header Orientation	Vertical
Number of Positions Per Level	9
Fastening Method	CONNECTOR
Length	45.87mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

ELFH09250 Product Details

ELFH09250 Overview

This device has a mounting type of Through Hole.In order to package the product, a Bulk case is used.It belongs to the ELFH Series of products.There is a mounting hole at Through Hole.The device is operating at -40°C~105°C Operating Temperature.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (4 Side) products.
