Name: 1766301
Brand: Phoenix Contact
SKU: 1766301
Price: 4.65000 USD
Availability: InStock

new-10%

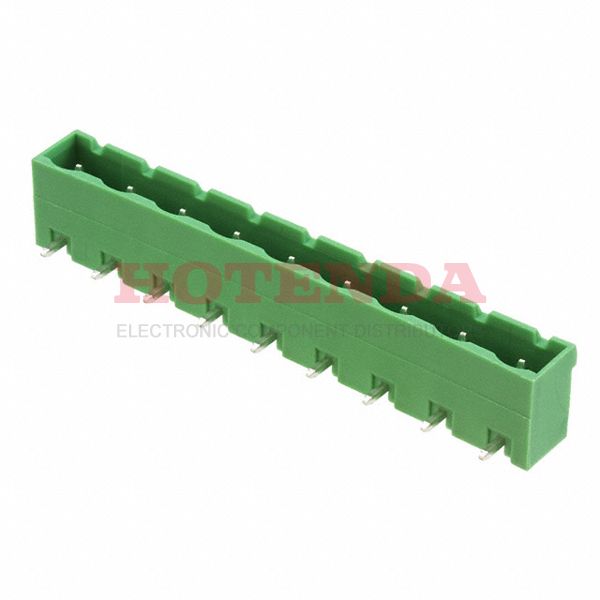

1766301

Manufacturer part number:1766301

Manufacturer:Phoenix Contact

Description:1766301 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766301 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	174.99999g
Packaging	Bulk
Published	2011
Series	COMBICON GMSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	9
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	9
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	18.5mm
Length	68.58mm
Width	68.58mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1766301 Product Details

1766301 Overview

Currently, it is packaged in Plug.This device has a Through Hole mounting type.It's packaged in a Bulk case.Specifically, it is one of the products in the COMBICON GMSTBA Series.Through Hole mounts the part.
