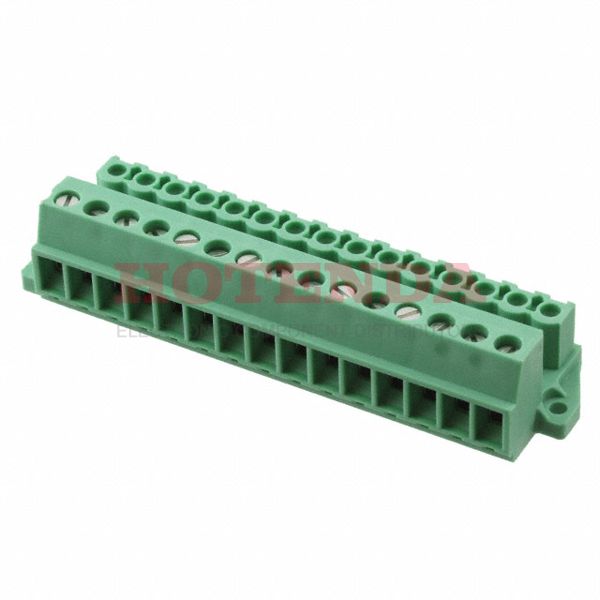

Name: 1824256
Brand: Phoenix Contact
SKU: 1824256
Price: 33.61000 USD
Availability: InStock

new

1824256

Manufacturer part number:1824256

Manufacturer:Phoenix Contact

Description:1824256 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1824256 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Plug-In
Mounting Type	Board Mount
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	205.999995g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBU
Feature	Mounting Flange, Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Receptacle, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	17mm
Insulation Height	0.669 17.00mm
Current Rating	12A
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	15
Safety Approval	UL
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	15
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	25.5mm
Width	86.08mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1824256 Product Details

1824256 Overview

You'll get Screw, Socket packages.The device's mounting type is Board Mount.In order to package the product, a Bulk case is used.The product is a part of the COMBICON MSTBU Series.There are also other features like PA, 94V-0, to name a few.There are a number of advantages to its Mounting Flange, Retention Latches feature.There is a mounting hole at Plug-In.There are a number of benefits that this part has in common with other Receptacle, Female Sockets products.
