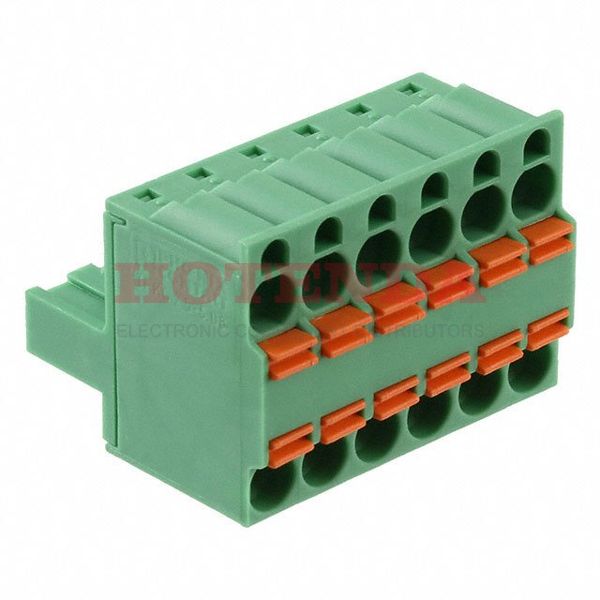

Name: 1962642
Brand: Phoenix Contact
SKU: 1962642
Price: 16.54000 USD
Availability: InStock

new

1962642

Manufacturer part number:1962642

Manufacturer:Phoenix Contact

Description:1962642 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1962642 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	13.499986g
Packaging	Bulk
Published	2002
Series	COMBICON TFKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, UL 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22.1mm
Insulation Height	0.870 22.10mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Number of Contacts	12
Voltage	300V
Max Current Rating	12A
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Positions Per Level	6 (Mate), 12 (Input)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	25.7mm
Length	25.7mm
Width	30.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1962642 Product Details

1962642 Overview

You get it in Socket packaging.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used for packaging.The product is part of the COMBICON TFKC Series.As well as PA, UL 94V-0, to name a few.A number of advantages are provided by its Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. Other Plug, Female Sockets products benefit from this part as well.
