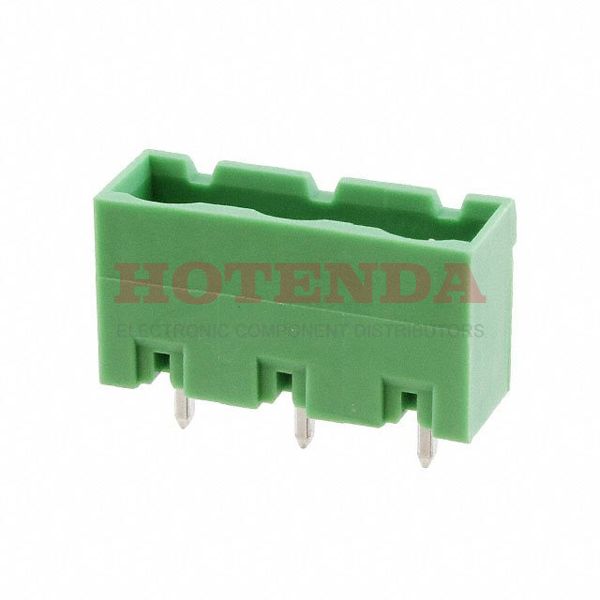

Name: 1766783
Brand: Phoenix Contact
SKU: 1766783
Price: 2.14000 USD
Availability: InStock

new-10%

1766783

Manufacturer part number:1766783

Manufacturer:Phoenix Contact

Description:1766783 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766783 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	176.999992g
Packaging	Bulk
Published	1998
Series	COMBICON GMSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	3
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	3
Fastening Method	CONNECTOR
Height	15.9mm
Length	22.86mm
Width	22.86mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1766783 Product Details

1766783 Overview

A Plug package is included with it.It's mounted Through Hole.The product is packaged in a Bulk case.Among the products in the COMBICON GMSTBVA Series, it is one of the most popular.Additionally, there are features like PA, 94V-0, just to name a few.Through Hole is mounting the part.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
