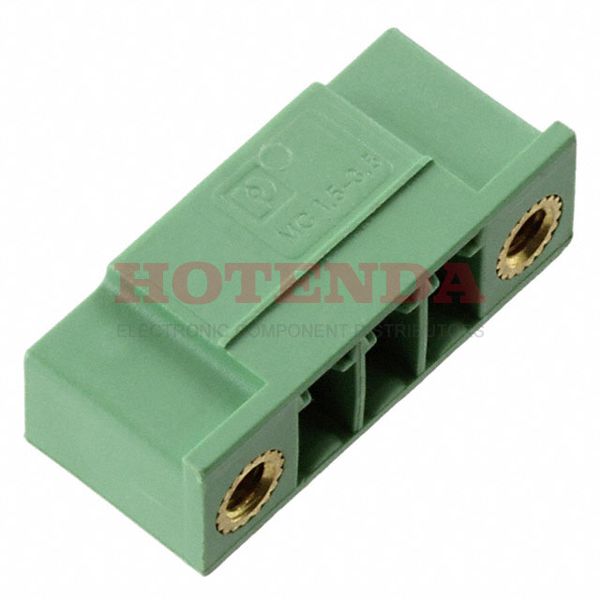

Name: 1817628
Brand: Phoenix Contact
SKU: 1817628
Price: 3.53000 USD
Availability: InStock

new-10%

1817628

Manufacturer part number:1817628

Manufacturer:Phoenix Contact

Description:1817628 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1817628 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Packaging	Bulk
Published	2014
Series	COMBICON MC
Feature	Locking Ramp, Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Gender	Male
Voltage - Rated	250V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Number of Positions Per Level	3
Length	20.8mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1817628 Product Details

1817628 Overview

Mounting type Through Hole is selected for the device.In order to package the product, a Bulk case is used.Product number COMBICON MC belongs to the COMBICON MC Series.With its Locking Ramp, Mating and Mounting Flange feature, it is more powerful in many ways.There's a Through Hole on the part.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (4 Side) products.
