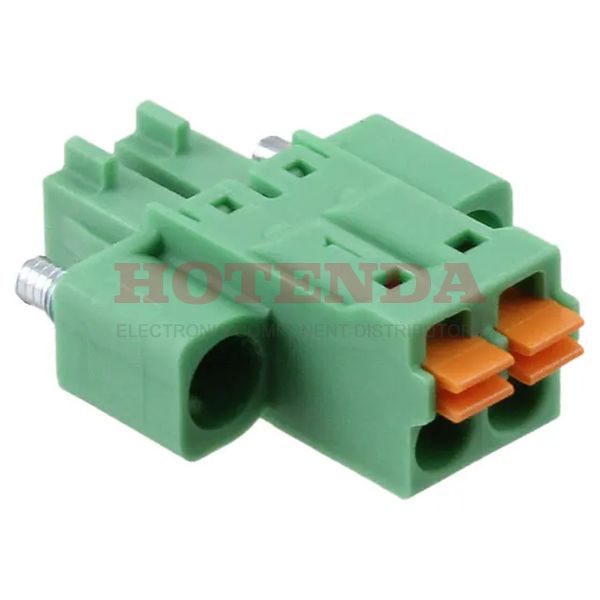

Name: 1748354
Brand: Phoenix Contact
SKU: 1748354
Price: 3.67000 USD
Availability: InStock

new-10%

1748354

Manufacturer part number:1748354

Manufacturer:Phoenix Contact

Description:1748354 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1748354 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.299997g
Packaging	Bulk
Published	2011
Series	COMBICON FMC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Approval Agency	CB, VDE, cULus
Voltage	150V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	2
Width	3.81mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1748354 Product Details

1748354 Overview

There is a Free Hanging (In-Line) mounting type for the device.Packaged in a Bulk case.The product is a member of the COMBICON FMC Series.Many aspects of its Mating Flange feature increase its effectiveness.The part is mounted by Free Hanging, Plug-In.This chip's supply voltage should not exceed 160V.As with other Plug, Female Sockets products, this part has a lot of benefits.
