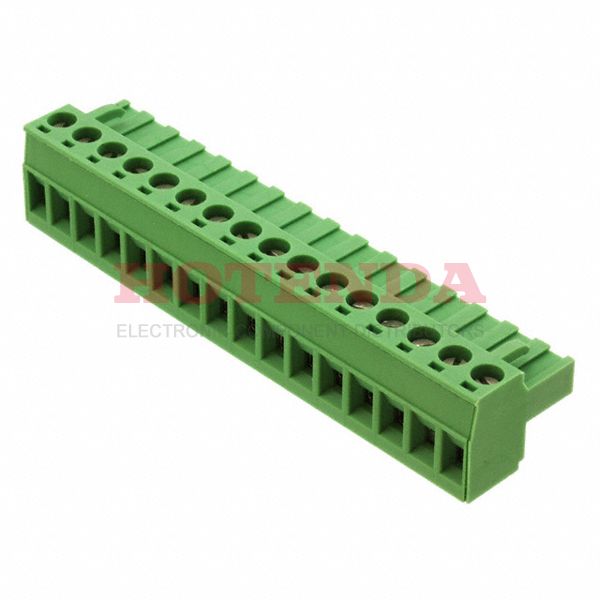

Name: 1781124
Brand: Phoenix Contact
SKU: 1781124
Price: 28.46000 USD
Availability: InStock

new

1781124

Manufacturer part number:1781124

Manufacturer:Phoenix Contact

Description:1781124 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1781124 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	129.999998g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	EN; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	81.28mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1781124 Product Details

1781124 Overview

It comes in a Screw, Socket package.Free Hanging (In-Line) indicates that the device is mounted.In order to package the product, a Bulk case is used.This is from the COMBICON MSTBT Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.In this case, Free Hanging mounts the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
