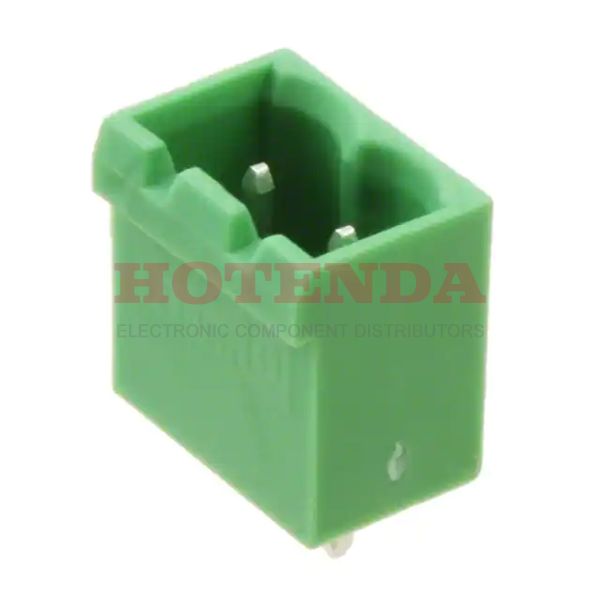

Name: 1809267
Brand: Phoenix Contact
SKU: 1809267
Price: 1.39000 USD
Availability: InStock

new-10%

1809267

Manufacturer part number:1809267

Manufacturer:Phoenix Contact

Description:1809267 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1809267 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	PCB, Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Packaging	Bulk
Published	2012
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Through Hole
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Gender	Male
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Depth	12mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Approval Agency	cULus
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	2
Width	8.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1809267 Product Details

1809267 Overview

Through Hole is the mounting type.We use a Bulk case to package the product.This is from the COMBICON MSTBVA Series.There is a mounting hole at PCB, Through Hole.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
