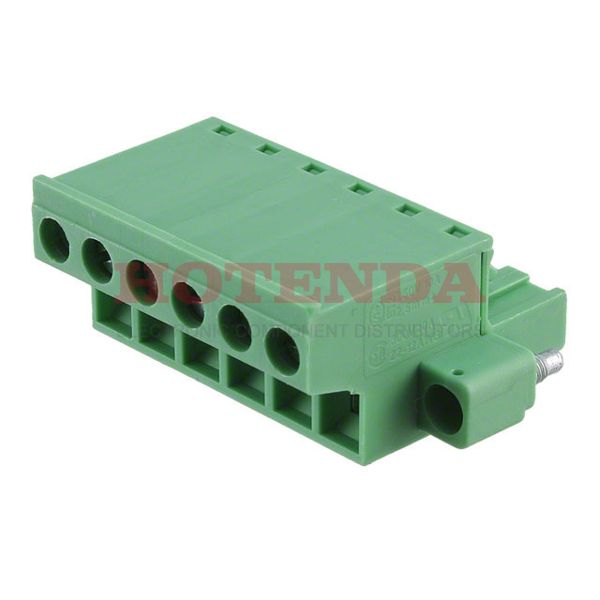

Name: 1777840
Brand: Phoenix Contact
SKU: 1777840
Price: 14.76000 USD
Availability: InStock

new

1777840

Manufacturer part number:1777840

Manufacturer:Phoenix Contact

Description:1777840 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777840 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	135.000004g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	27.5mm
Insulation Height	1.083 27.51mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Height	27.2mm
Length	40.28mm
Width	40.28mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777840 Product Details

1777840 Overview

Packaging is Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.It is necessary to use a Bulk case for packaging the product.The product is a member of the COMBICON FRONT-MSTB Series.Additionally, there are other features such as PA, 94V-0.A number of advantages are provided by its Mating Flange, Retention Latches (Non-Wire Side) feature.Free Hanging is the mounting point for the part.This chip should not be operated above 250V volts.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
