Name: 1768859
Brand: Phoenix Contact
SKU: 1768859
Price: 17.64000 USD
Availability: InStock

new

1768859

Manufacturer part number:1768859

Manufacturer:Phoenix Contact

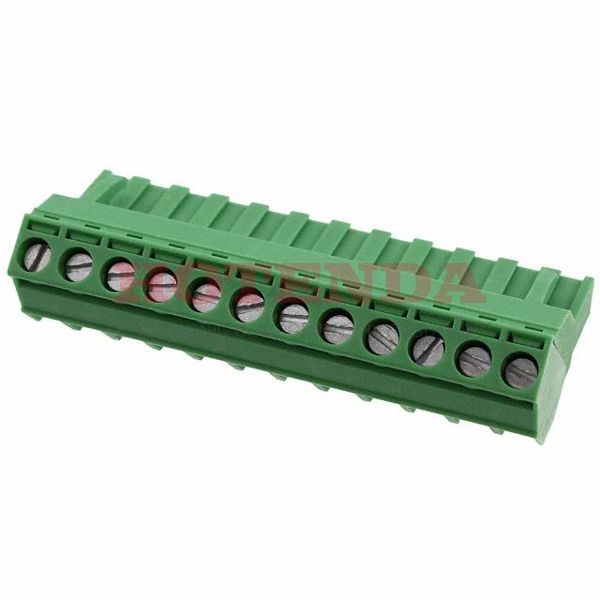

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON SMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1768859 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Series	COMBICON SMSTB
Published	2013
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-2
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	25.5mm
Insulation Height	0.610 15.49mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, cULus
Number of Contacts	12
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	15.5mm
Length	60mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1768859 Product Details

1768859 Overview

Screw, Socket packaging is included.This device has a mounting type of Free Hanging (In-Line).We package the product with a Bulk case.The product is part of the COMBICON SMSTB Series.Additionally, there are features like PA, 94V-2, just to name a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.You've got Cable, Free Hanging, Plug-In mounted on the part.A supply voltage of 250V is recommended for this chip.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
