1857948

1857948

1857948

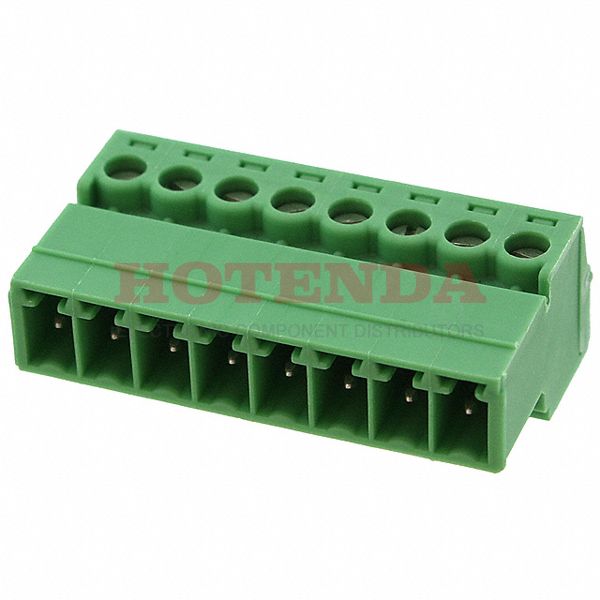

Phoenix Contact

1857948 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1857948 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 102.999998g
PackagingBulk
Published 2011
Series COMBICON IMC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 11.1mm
Insulation Height 0.437 11.10mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, VDE, cULus
Number of Contacts 8
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Height 17.9mm
Length 11.1mm
Width 31.27mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:470 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.493000$14.493
10$13.672642$136.72642
100$12.898718$1289.8718
500$12.168602$6084.301
1000$11.479813$11479.813

1857948 Product Details

1857948 Overview


Packaging for this item is Plug, Screw.The device's mounting type is Free Hanging (In-Line).An Bulk case is utilized for packaging the product.Product number COMBICON IMC belongs to the COMBICON IMC Series.Additionally, there are other features, such as PA, 94V-0.There's a Cable, Free Hanging mount on the part.Other Plug, Male Pins products benefit from this part as well.

1857948 Features


COMBICON IMC series

1857948 Applications


There are a lot of Phoenix Contact 1857948 Terminal Blocks applications.

  • Measuring & Control Technology
  • Medical technology
  • Anywhere power is distributed
  • LED municipal outdoor and street lighting
  • Instrumentation
  • Military Technology
  • Refrigeration control
  • Control panels
  • Telecommunications
  • Data Technology
