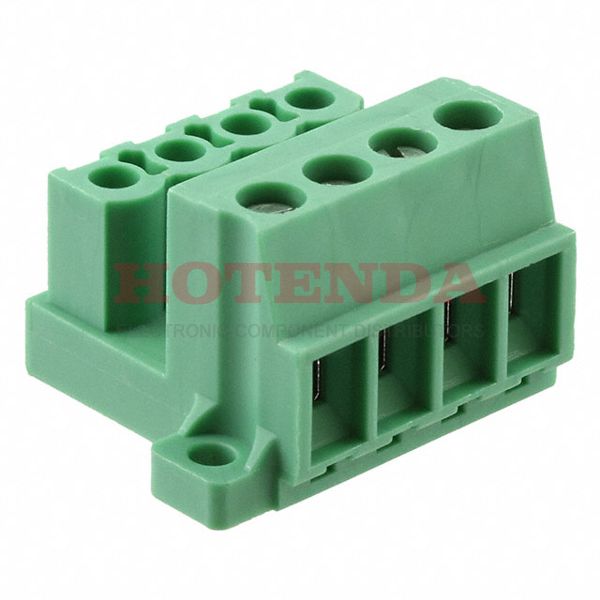

Name: 1824146
Brand: Phoenix Contact
SKU: 1824146
Price: 10.92000 USD
Availability: InStock

new

1824146

Manufacturer part number:1824146

Manufacturer:Phoenix Contact

Description:1824146 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1824146 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mounting Type	Board Mount
Housing Material	Polyamide (PA), Nylon
Weight	205.999995g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBU
Feature	Mounting Flange, Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Receptacle, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	2
Voltage - Rated	320V
Pitch	0.200 5.08mm
Insulation Height	0.669 17.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Height	25.5mm
Length	19mm
Width	30.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1824146 Product Details

1824146 Overview

The packaging contains Screw, Socket.This device's mounting type is Board Mount.A Bulk case is used for packaging.The product is a part of the COMBICON MSTBU Series.In many ways, its Mounting Flange, Retention Latches feature makes it more powerful.There are many benefits that this part shares with other Receptacle, Female Sockets products as well.
