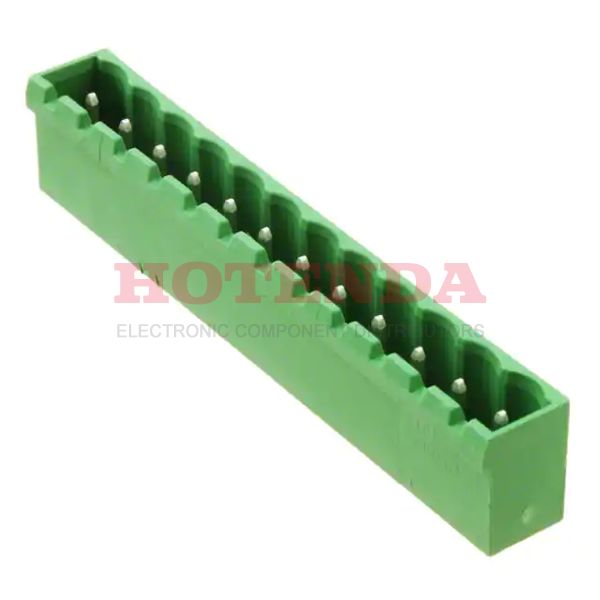

Name: 1755833
Brand: Phoenix Contact
SKU: 1755833
Price: 4.17000 USD
Availability: InStock

new-10%

1755833

Manufacturer part number:1755833

Manufacturer:Phoenix Contact

Description:1755833 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755833 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	154.999997g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code	8536.69.40.40
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	12
Number of Decks	1
Voltage - IEC	630V
Number of Ways	12
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.9mm
Length	62.96mm
Width	62.96mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755833 Product Details

1755833 Overview

This product is packaged in a Plug cartonThrough Hole is the mount type.Packaged in a Bulk case.The product belongs to the COMBICON MSTBVA Series.There are also other features like STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE, to name a few.Through Hole is the mounting point for the part.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
