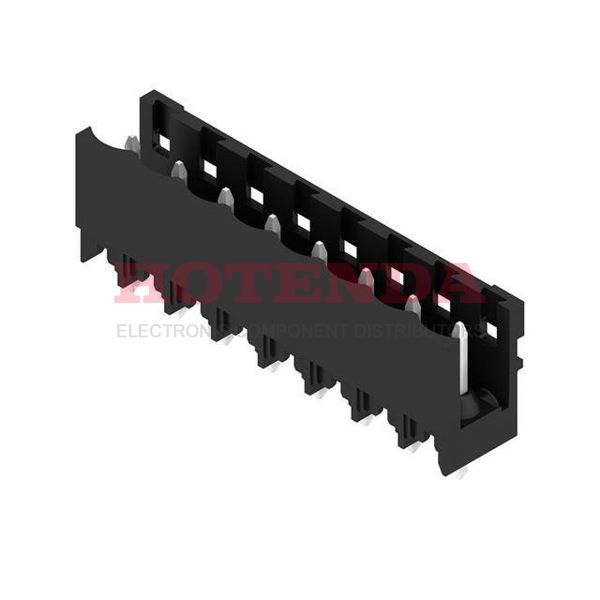

Name: 1840980000
Brand: Weidmüller
SKU: 1840980000
Price: 2.26000 USD
Availability: InStock

new-10%

1840980000

Manufacturer part number:1840980000

Manufacturer:Weidmüller

Description:1840980000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1840980000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (2 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	8
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Number of Poles	8
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	18.5A
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	27.5A
Hole Diameter	1.4 mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1840980000 Product Details

1840980000 Overview

This device has a mounting type of Through Hole.A Bulk case is used for packaging.A member of the Omnimate SL Series.Through Hole is mounting the part.As a result, the device runs at -50°C~100°C Operating Temperature.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (2 Side) series.
