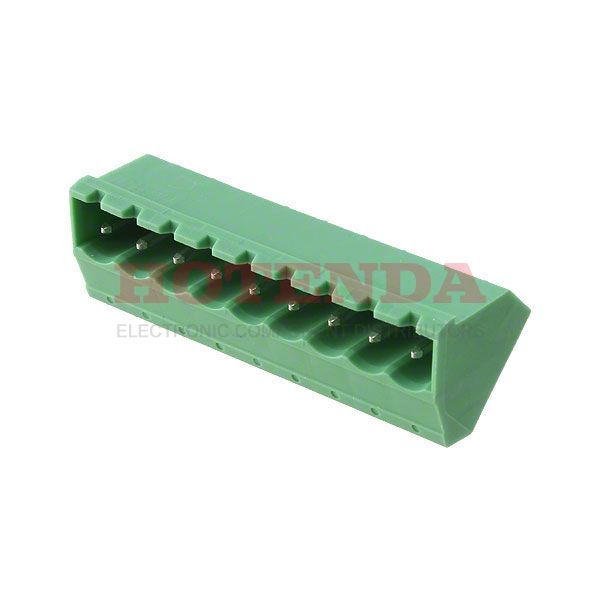

Name: 1767449
Brand: Phoenix Contact
SKU: 1767449
Price: 3.86000 USD
Availability: InStock

new-10%

1767449

Manufacturer part number:1767449

Manufacturer:Phoenix Contact

Description:1767449 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767449 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	155.999998g
Packaging	Bulk
Published	2010
Series	COMBICON SMSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	45 deg
Depth	16.5mm
Insulation Height	0.583 14.80mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	9
Safety Approval	UL; CSA
Header Orientation	45°
Number of Positions Per Level	9
Height	16.5mm
Length	47.72mm
Width	47.72mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1767449 Product Details

1767449 Overview

Currently, it is packaged in Plug.The device's mounting type is Through Hole.We package the product with a Bulk case.A member of the COMBICON SMSTBA Series.Through Hole mounts the part.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
