Name: 1751426
Brand: Phoenix Contact
SKU: 1751426
Price: 10.47000 USD
Availability: InStock

new

1751426

Manufacturer part number:1751426

Manufacturer:Phoenix Contact

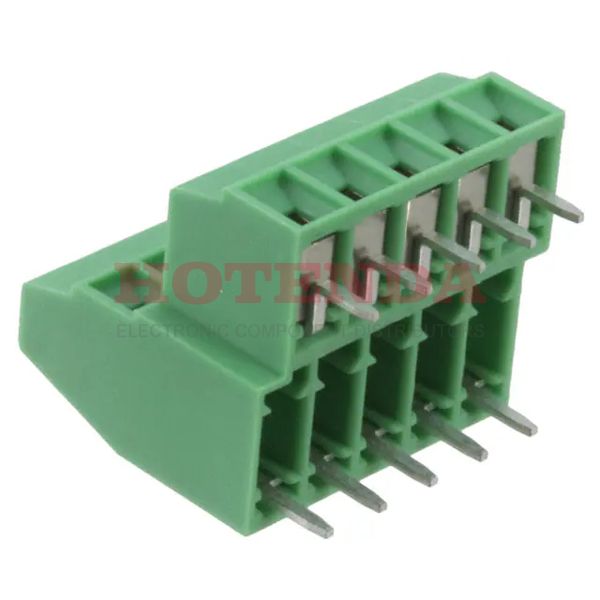

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 16-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1751426 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	6.35001g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	200V
Additional Feature	PA, 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Depth	16.3mm
Current Rating	8A
Wire Gauge	16-30 AWG
Voltage	300V
Number of Circuits	10
Max Supply Voltage	160V
Max Current Rating	10A
Number of Levels	2
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	5
Height	16.2mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1751426 Product Details

1751426 Overview

A Screw package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON MKKDS Series of products.Additionally, there are other features, such as PA, 94V-0.Through Hole mounts the part.10 circuits make up the part.This chip should not be supplied with a voltage greater than 160V.
