1751477

1751477

Phoenix Contact

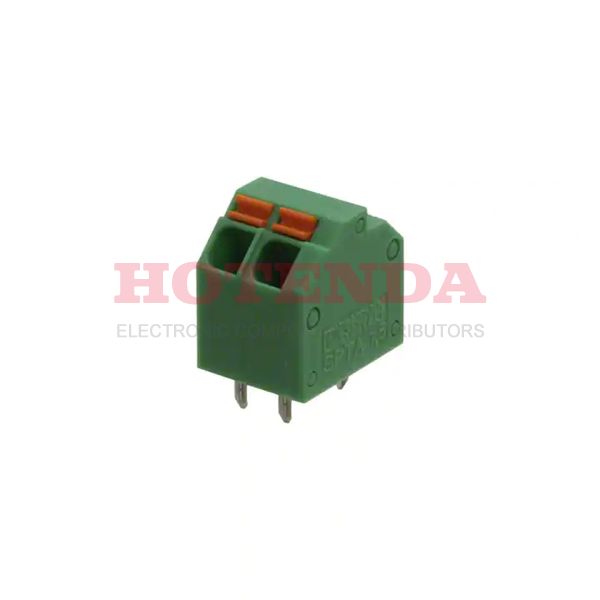

0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-26 AWG COMBICON SPTA

SOT-23

1751477 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 23.999998g
PackagingBulk
Series COMBICON SPTA
Published 2011
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 2
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, UL 94V0
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Current Rating9A
Wire Gauge16-26 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 2
Safety Approval UL
Mating Orientation 45° (135°) Angle with Board
Wire TerminationScrewless - Spring Cage, Tension Clamp
Fastening Method SPRING LOADED
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:5613 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.549845$0.549845
10$0.518722$5.18722
100$0.489360$48.936
500$0.461660$230.83
1000$0.435529$435.529

1751477 Product Details

1751477 Overview


Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the COMBICON SPTA Series.Then there's PA, UL 94V0, for example.Mounted by Through Hole.

1751477 Features


COMBICON SPTA series


1751477 Applications


There are a lot of Phoenix Contact
1751477 Terminal Blocks applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
