Name: 1733428
Brand: Phoenix Contact
SKU: 1733428
Price: 2.32000 USD
Availability: InStock

new-10%

1733428

Manufacturer part number:1733428

Manufacturer:Phoenix Contact

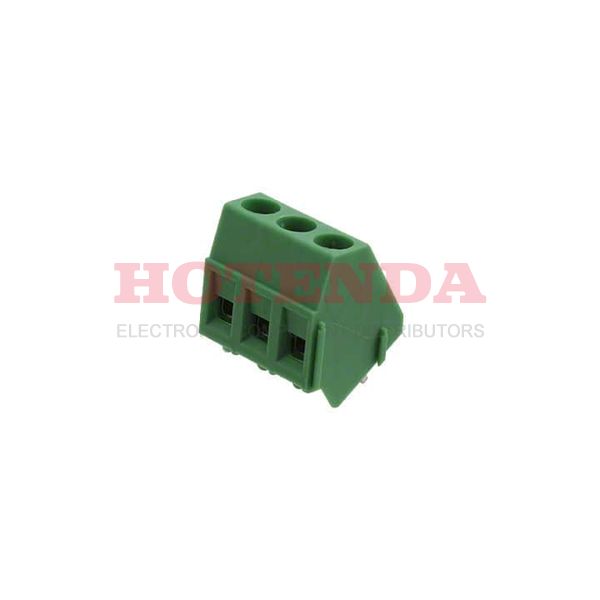

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON SMKDSP

Case Package:SOT-23

Datasheet:1733428 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.179995g
Packaging	Bulk
Series	COMBICON SMKDSP
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Depth	13.4mm
Current Rating	17.5A
Approval Agency	CB, CSA, UL
Number of Contacts	3
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	22A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	15mm
Length	13.4mm
Width	18.8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1733428 Product Details

1733428 Overview

It comes in a Screw package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the COMBICON SMKDSP Series.As well as PA, 94V-0, to name a few.A number of advantages can be derived from its Interlocking (Side) feature.This part is mounted by Through Hole. In order for this chip to function properly, the supply voltage should not exceed 250V.
