Name: 1731734
Brand: Phoenix Contact
SKU: 1731734
Price: 4.08000 USD
Availability: InStock

new-10%

1731734

Manufacturer part number:1731734

Manufacturer:Phoenix Contact

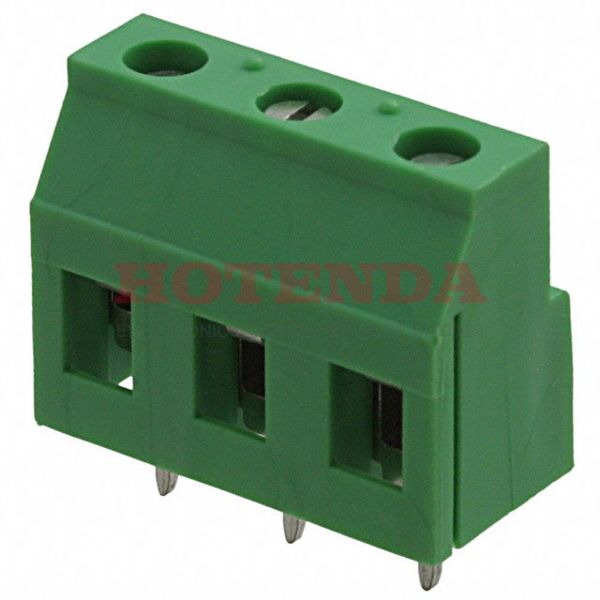

Description:0.300 7.62mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON GMKDS

Case Package:SOT-23

Datasheet:1731734 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	7.200013g
Packaging	Bulk
Series	COMBICON GMKDS
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	630V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Straight
Depth	11.2mm
Current Rating	24A
Number of Contacts	3
Wire Gauge	12-30 AWG
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	30A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	11.2mm
Width	23mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1731734 Product Details

1731734 Overview

Packaging for this item is Screw.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON GMKDS Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.It is recommended that the supply voltage of this chip not exceed 500V.
